Application:

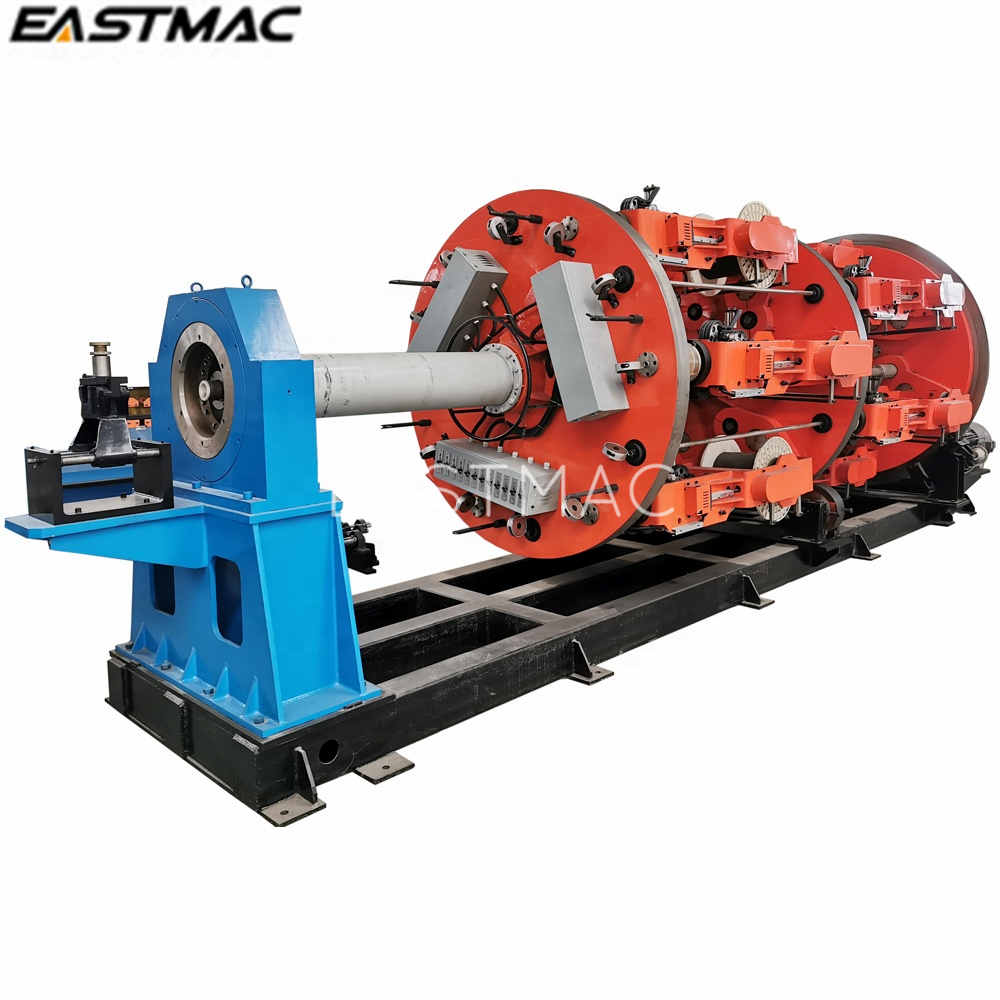

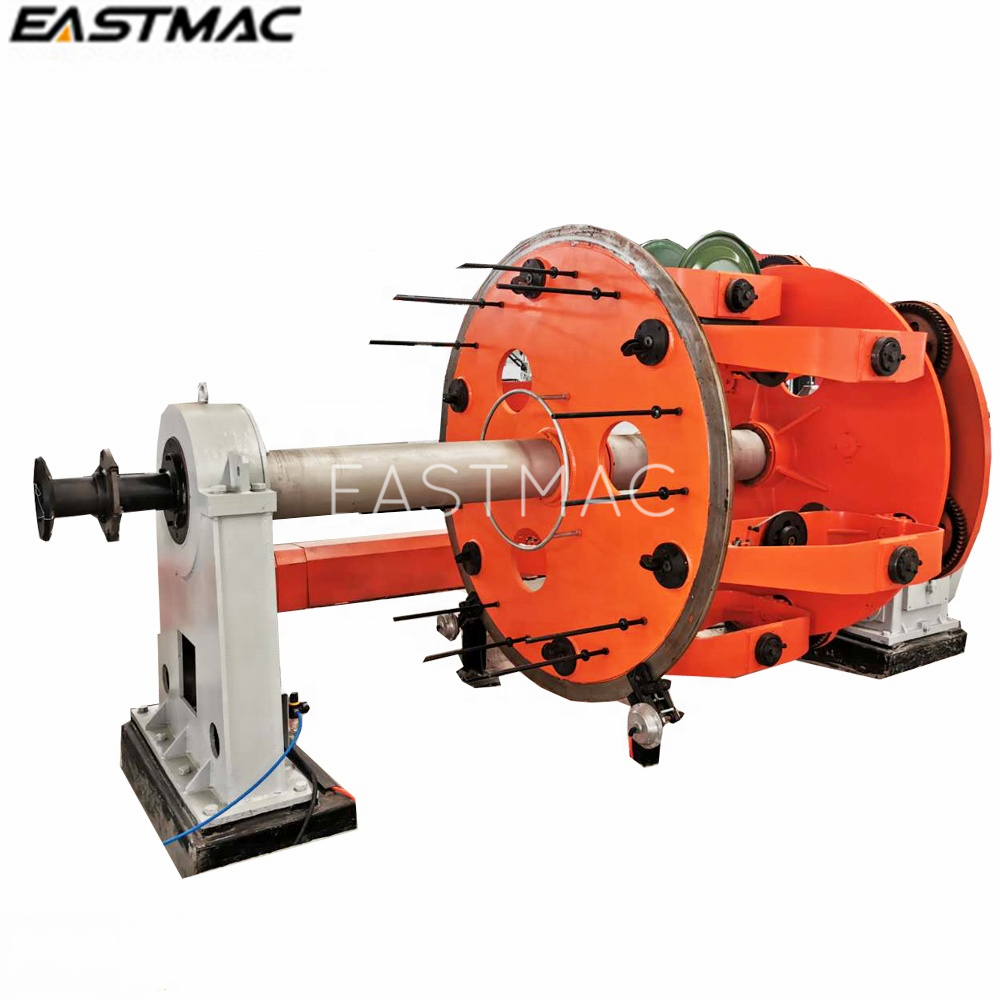

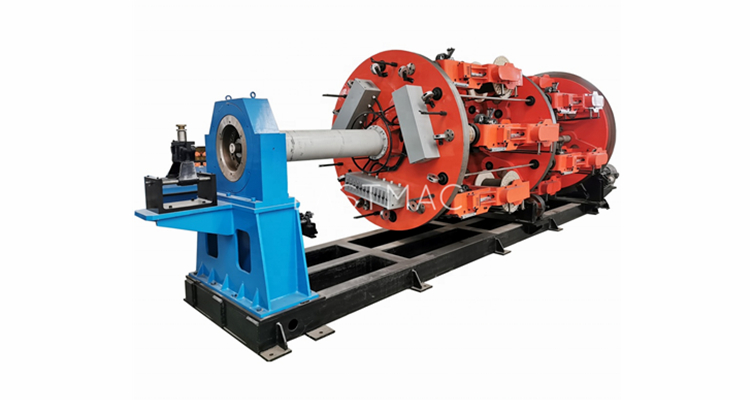

Planetary type Stranding machine is used for the stranding cable less than 7cores with fully back-twist.
Products produced by Planetary type Stranding machine:
Main technical data:
|
Max. Single-stranded diameter |
10mm |
|
Max. stranding out-dia. |
25mm |
|
Cage rotating speed |
25~59r/min |
|
Stranding pitch |
60~2570mm |
|
Drawing wheel dia. |
1600mm |
|
Linear speed |
3.54~38.8m/min |
|
Pay-off bobbin inside planetary |
PN630 |
|
Middle pay-off bobbin standard |
PN630 |
|
Take-up bobbin standard |
PN800~PN1600 |
|
Main motor power |
30KW(AC) |
Main Parts:
1. 630 stationary pay-off

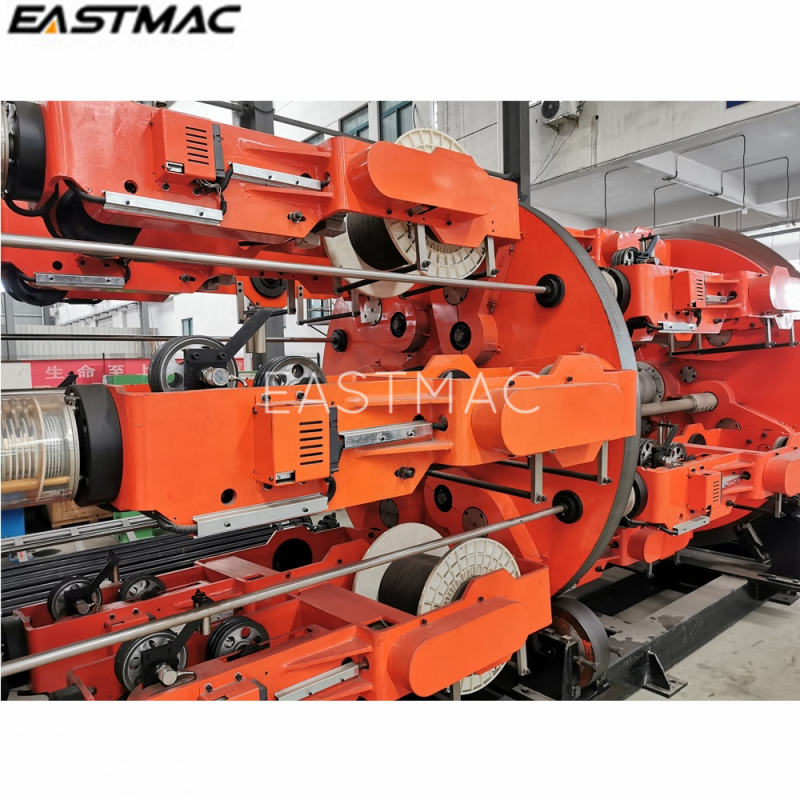

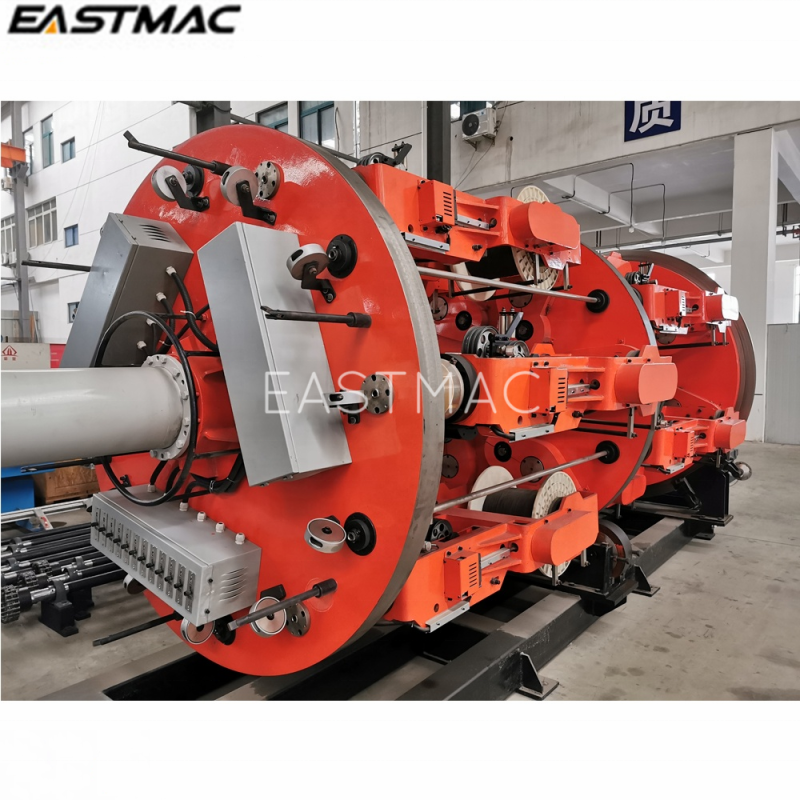

2. 6 Bobbin planetary strander
3. Pressing die stands
4. Counter
5. Φ1600 double wheel Capstan
6. Φ1600 column type take-up stand
7. Transmission system
8. Electrical system
9. Safety fence
