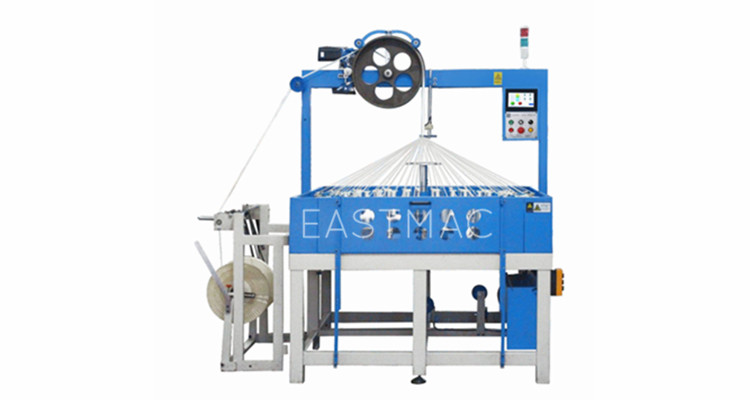

Series C wire braiding machine
Application:
This Series is suitable for all kinds of the braiding of flat copper strip, heat sink and large casing.
Main Technical Data:
|
Model |
GB-48/56/64C1D |
|
Speed of the Horngear |
260RPM |
|
Motor power/Voltage |
1.5/1.5/2.2/KW 220V |
|
Braiding Diameter |
≤25mm |
|
Braiding Pitch |
3-38PPI |
|
Output Speed |
150m/h(5PPI) |
|
Braiding Material |
Metal wire 0.10-0.18mm |
|
Bobbin Volume |
C3:65*210mm/635cc |
|
Pay-off and Take-up Device |
Friction take up and payoff reel/400-630mm |
