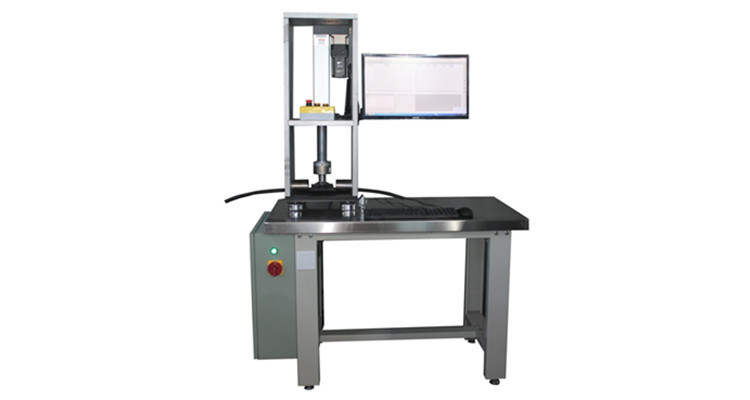

CNC-1000 Series
Optical Cable Crush/cut-through Resistance Testing Machine
Features :

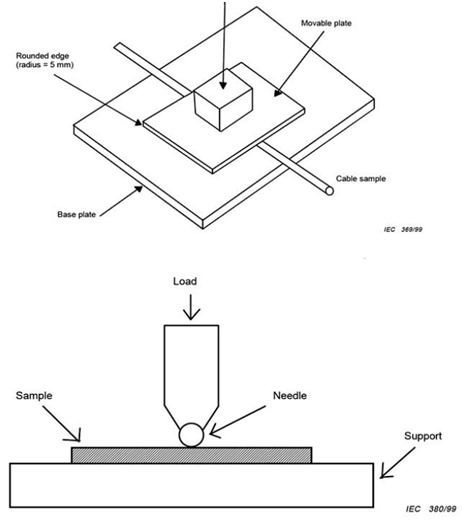

UNIVER CNC-1000 Series is designed to perform crush and cut through test on optical cable according to IEC 60794-1-21 E3 & E12,
it has servo- controlled screw driving system to apply compressive force, changing different jig to meet crush and cut through test.
Basic parameters:
|
Crush Capacity |
kN |
10 |
|
Accuracy class |
ISO 7500-1 |
±0.5% |
|
Crosshead travel |
mm |
200 |
|
loading speed |
mm/min |
0.01-500 or 50 N/min ± 10 N/min |
|
Displacement measuring accuracy |
% |
±0.5% |
|
Crush platen |
mm |
100x100, be rounded with radius of edge 5mm |
|
Diameter of cutting needle |
mm |
1mm or Upon request |
|
Power |
mm |
Single phase, Line to line 220Vac, 50-60Hz, 1.5kW |
|
Painting color |
RAL |
9006 |
