Product Description
Application:

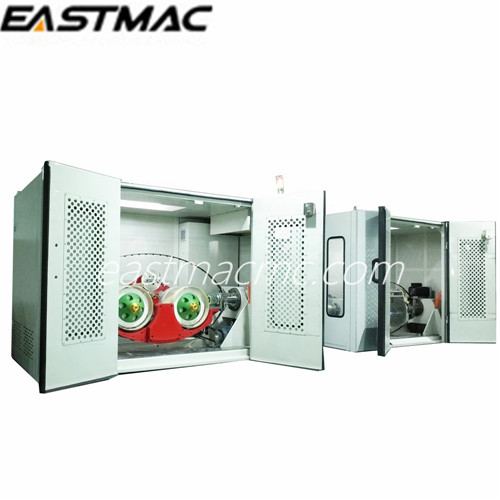

Drutruple twisting machine is mainly used for pairing of insulated wires for communication cables such as LAN cable (CAT5/CAT5E/CAT6/CAT7), date cable, signal cable, instrumentation cable etc.
Main parts:
Torsion free flyer Payoff DIN500
Double twist takeup DIN500
PLC control system with color touch screen
Main technical data:
| Max rotate speed | 1800 rpm |
| Individual core wire | 0.8~1.7mm |
| Payoff & Takeup | DIN500 |
| Lay length range (mm) | 5~50mm |
| Back twist rate | 0-98% |
| Tension | 0.6-3kg |
| Max Linear speed (m/min) | 270m/min |
| Control system | PLC automatic control system |
