Application:

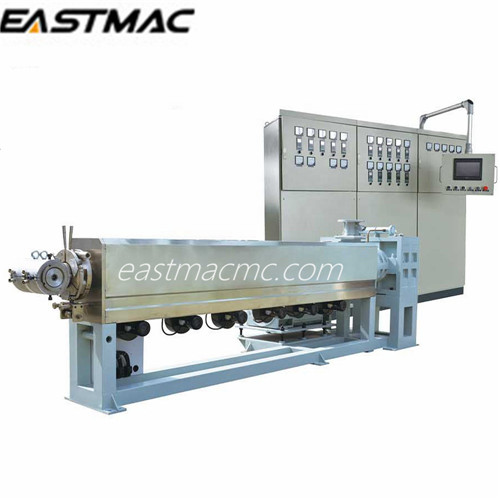

High speed Cable extrusion line is used for insulating cable core with PVC, PE, PP, Flame retardant polyolefin and other thermoplastic.
Products produced by High speed Cable extrusion line:
Main technical data:
|
Cable core dia. |
20~60mm |
|
Dia. after extruding |
25~70mm |
|
Line speed |
5~70m/m |
|
Extruding capacity |
40~480kg/h (PVC) |
|
Main motor |
132KW |
|
Capstan motor |
11KW |
|
Cooling water trough length |
20+2m |
|
Pay-off bobbin size |
PN1250~PN2500 |
|
Take-up bobbin size |
PN1250~PN2500 |
Main parts:
