Application:

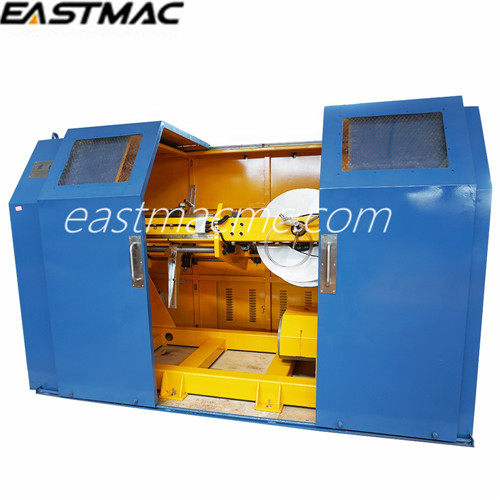

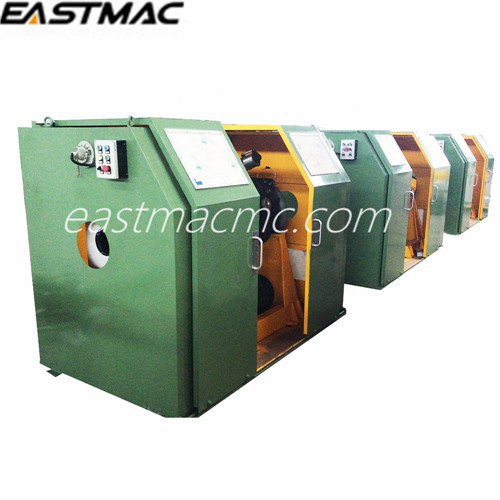

Eccentric type wire and cable non-metallic taping machine is mainly used for wrapping Non-woven fabric, glass cloth, semiconductor fabricon the cable core to be cable armoring layer.
Main technical data:
|
Max. OD of taping wire |
100 mm |
|
ID of hollow shaft |
120 mm |
|
Taping pad size (O.D.× I.D.×W.) |
600 x 80mm x (15~80mm) |
|
Taping width |
15~80 mm |
|
Thickness of tape |
0.1~0.5 mm |
|
Driving motor |
15 KW(AC motor with inverter) |
|
Max. rotating speed of taping head |
800 r/min(Taping width:80mm) |
|
Max. rotating speed of taping head |
Non-woven fabric, glass cloth, semiconductor fabric and so on
|
|
Taping tension |
2.5~15 KG
|
|
The structure of taping head |
2B, Eccentric |
|
Pitch changing |
Step-less |
|
Pneumatic brake device With the function of right and left rotating and stopping work. With the function of wire-breaking and wire-finishing. |
|
