Application:

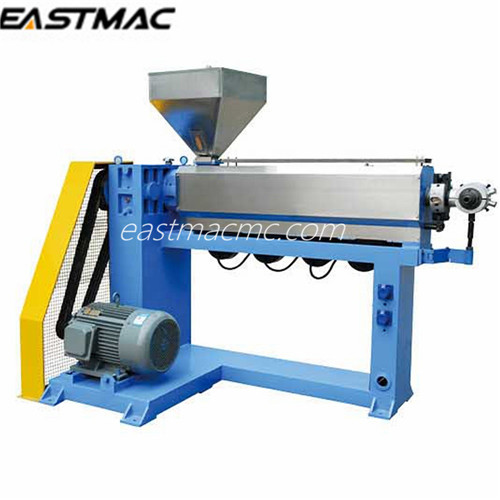

High speed Cable extrusion line is used for insulating cable core with PVC, PE, PP, Flame retardant polyolefin and other thermoplastic.
Products produced by High speed Cable extrusion line:
Main technical data:
|
Cable core dia. |
0.5~2.73mm |
|
Dia. after extruding |
5mm Max. |
|
Line speed |
20~150m/m |
|
Extruding capacity |
4~45kg/h (PVC) |
|
Main motor |
11KW |
|
Capstan motor |
4KW |
|
Cooling water trough length |
8+1.5m |
|
Pay-off bobbin size |
PN400~PN630 |
|
Take-up bobbin size |
PN400~PN630 |
Main parts:
