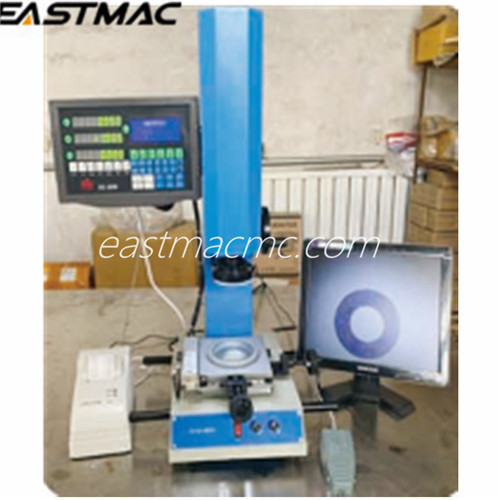

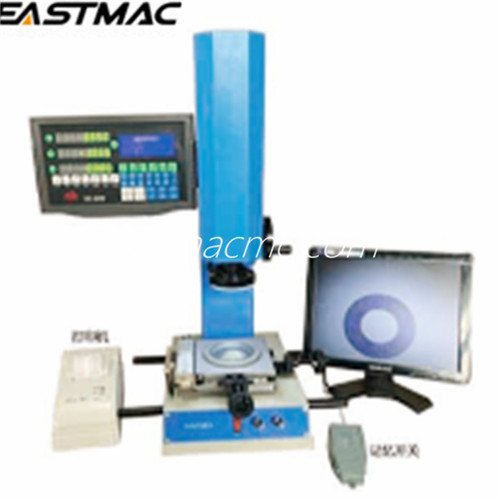

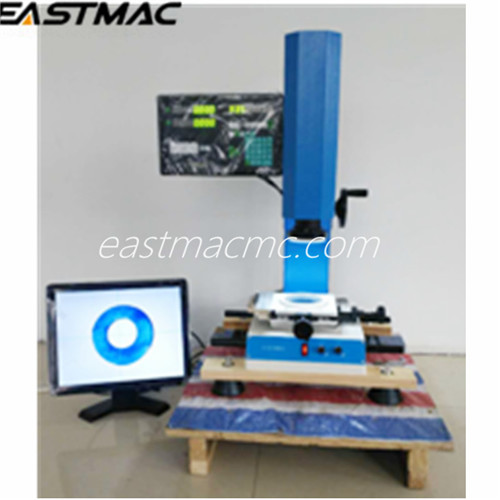

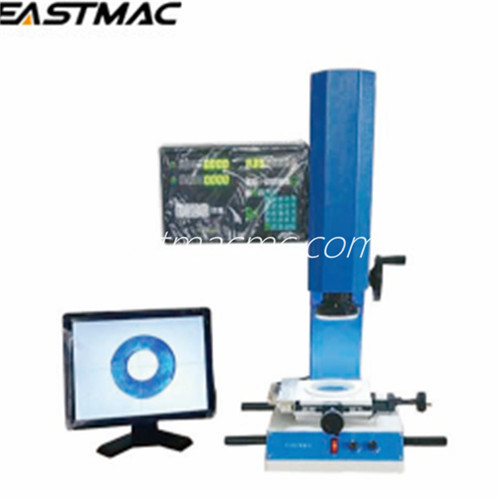

25J digital measuring projector
Application:
25J electronic projector used in GB/T2951.1-2008 "cable insulation and sheath material general method" standard requirements, is a kind of optical, electrical integration of precision and efficient optical measuring instrument, suitable for wire and cable, instrumentation, plastic and other industries widely used.
Specifications and Parameters
|
working desk size |
160 mm x 160 mm |
|
LCD screen |
15 ' |
|
Worktable stroke |
X axis: 50mm Y axis: 50mm |
|
Focusing stroke |
100mm |
|
Glass table size |
Φ92 |
|
Rotation range of object platform |
0-360° |
|
Image system |
color high resolution CCD camera |
|
Total magnification |
16×-100× (object working distance 92mm) |
|
Optional with 0.5× objective lens after magnification |
8.5×-55× (object working distance 135mm) |
|
Measurement of handwheel grid value |
0.01mm |
|
upper and lower light source |
LED lamp bead |
|
Power supply |
220V 50HZ |
|
Instrument dimensions |
407×278×686 |
