CIT-1000 Series

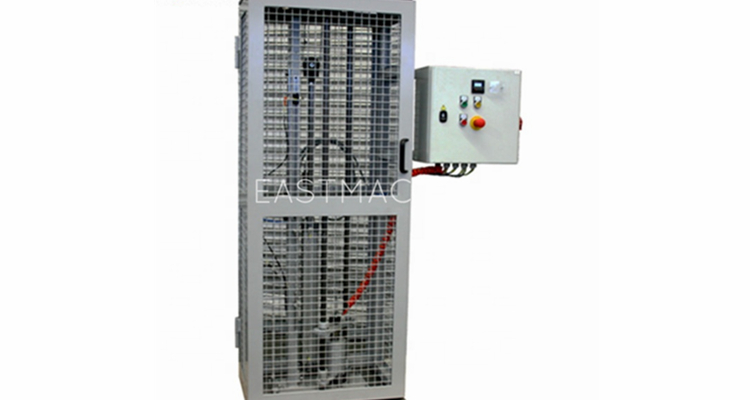

Optical Cable Impact Testing Machine
Overview
UNIVER CIT-1000 Series Optical Fiber Cable Impact Testing Machine is intended to determine the ability of optical fiber cable withstand

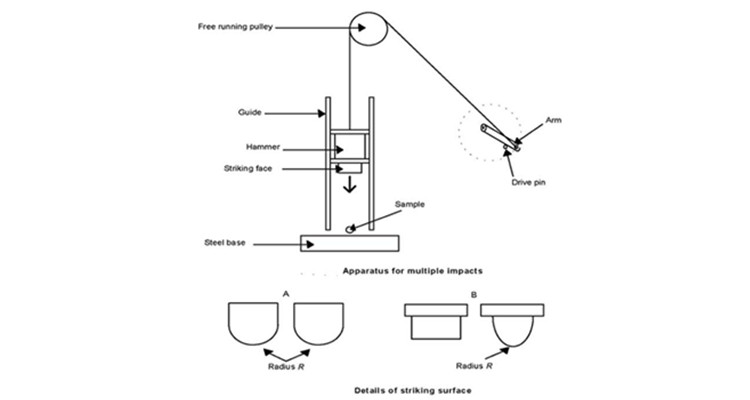

impact. IEC-60794-1-2-E4 / IEC-60794-1-21-E4
Main technical parameters:
|
Drop height |
mm |
30-1000 (stepless adjustable) |
|
Max. impact cycles |
Cycles |
1-9999 |
|
Frequency range |
Cycles/min |
10-20 |
|
Hammer diameter |
mm |
201 |
|
Striking surface curvature radius |
mm |
300 |
|
Mass of striker (outdoor cable) |
kg |
1 |
|
Mass of weights |
kg |
0.5kg×4 |
|
Dimensions (L*W*H) |
||
|
Working frame |
mm |
1500*720*1800 |
|
Control console |
mm |
400*300*800 |
|
Power |
|
Single phase, Line to line 220Vac, 50-60Hz, 1.5kW |
|
Painting color |
RAL |
9006 |
