Main Parameters
Structure: Vertical take-up with single-head, single-traction, single-traversing per spindle. 4 take-up heads total.
Compatible Bobbins: PT25 to PT200.
Control System: Independent inverter speed control and separate traversing for each wire.
Power Supply: 3-phase, 5-wire system (L1/L2/L3/N/PE), 380V±10%, 50Hz±1.
Color: Customizable per customer request.
Key Features
Torque-based single-spindle vertical winding with fine-tension adjustment.
Independent traction and traversing for each wire, allowing precise, individualized speed and lay control.

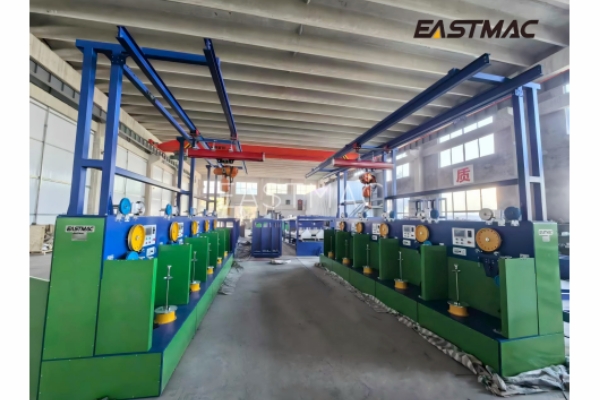

Equipped with left/right separated mini cranes for easy loading/unloading of PT60-PT200 bobbins.
Inverter-driven speed control for flexible operation and adaptation to production changes.
Robust and user-friendly design for efficient bobbin changeover and maintenance.
Key Advantages
✅ Enhanced Productivity: Four independent spindles enable continuous operation, significantly reducing downtime.
✅ Superior Winding Quality: Independent control and adjustable tension ensure consistent, precise, and damage-free winding on every bobbin.
✅ Operator-Friendly: Integrated mini cranes drastically reduce manual effort and improve safety during bobbin handling.
✅ High Flexibility: Versatile design accommodates a wide range of bobbin sizes (PT25-PT200), adapting to various production needs.
✅ Reliable Performance: Built with stable mechanics and wide voltage tolerance for dependable operation in continuous production environments.
